> Bridgeport series ii 5HP mill - tall column

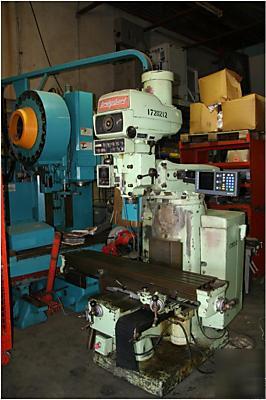

Bridgeport series ii 5HP mill - tall column
Tall column machines were about 6in taller than the standard Series II mills. It was about a 2000.00 option as not many were produced.

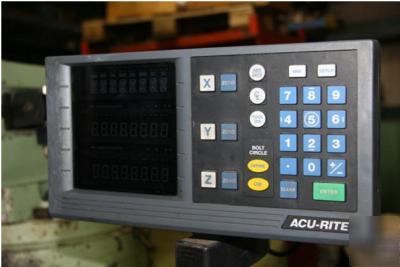

This mill has a recently installed Acu-Rite 3 axis DRO with Bolt Circle, Tool Diameter, Center Line programming, etc.
Machine came from a major aircraft mfg tooling department and was not used for production machining. Machine is in good condition, all feeds work, Machine has some noise in the variable speed unit.
* Bridgeport Vertical Turret Mill S/N 2280
* WORKING SURFACE OF TABLE - 11" X 58"
* RANGE - LONGITUDINAL-30",CROSS-15",VERTICAL(KNEE)-12"
* MAXIMUM TABLE LOAD CAPACITY - 1,500 LBS.
* SPINDLE SPEEDS - 50-3500 RPM,
* THROAT, MIN./MAX. - 10-5/8-26-5/8"
* QUILL POWER FEED RANGE - 0.6-2.5 ipm
* SPINDLE TAPER - #40 Quick Switch
* HEAD TILTS LEFT TO RIGHT - 90
* HEAD TILTS FRONT TO BACK - 30
* MAX. TABLE LOAD - 1,500 LBS.
* APPROXIMATE MACHINE WEIGHT - 6,000 LBS.
* #40 ERICKSON QUICK SWITCH SPINDLE
* POWER FEED ON QUILL, KNEE, & TABLE
