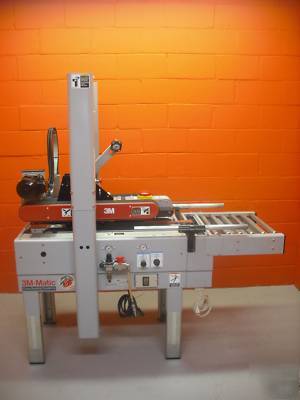

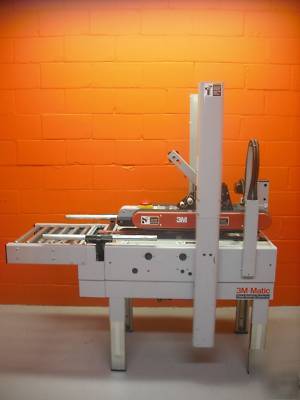

3M-matic 700R random case sealer, 15 boxes per min


3M-Matic 700r Random Case Sealer
Random size case sealer for consistent flow and sealing of tall cases at up to 15 cases per minute. Automatically adjusts for case height and width. Includes 3M AccuGlide II Taping Heads for low-impact application of tapes 36 mm to 48 mm wide
* Minimum Box Length: 6"[150mm]
* Maximum Box Length: Unlimited
* Minimum Box Width: 6" [I50mm]
* Maximum Box Width: 21.5"(545mm]
* Minimum Box Height: 4.75"[120mm] (*Can be adjusted down to 3.75")
* Maximum Box Height: 24.5"[620mm]
* Weight (filled): up to 85 lbs. [38.6kg]
* Roll Diameter: up to 16" [405mm] maximum on a 3" [76.2mm] diameter core
* Tape Width: 1.5"[36mm] minimum to 2"[48mm] maximum
* Machine Power: Electrical - 115 V, 6OHz, 3.8A, 440 watts, 8ft neoprene covered power cord with grounded plug

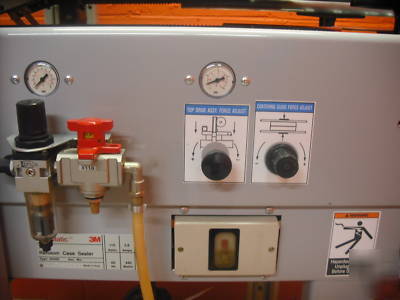

* Machine Pneumatic: 70 PSIG[4.8 bar gauge pressure], 3.75 SCFM [.14 I/min @ 21 degrees C, 1.01 bar] at 15 boxes per minute. A pressure regulator is included
* Machine Operating rate: Up to 15 boxes per minute depending on box length
* Machine Box drive belt speed: 75 fpm [23m/M]
