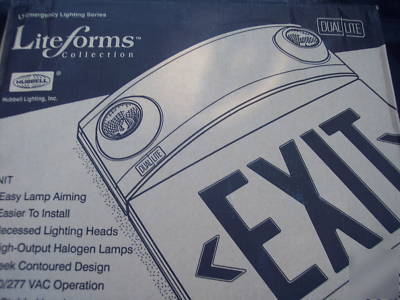

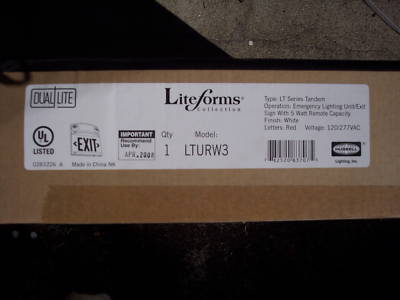

New hubbell exit sign dual lite model LTURW3 free ship
Tandem Emergency Lighting Unit/Exit Signs
UL Damp Location Listed (Damp location designated models only)
Meets ADA specifications for wall mounted lighting fixtures
Low-profile, easy to install emergency lighting unit/exit sign tandem models feature high-output halogen lamps. Available in remote capacity and damp location versions.
Semi-recessed eyeball style lighting heads
High-output halogen lamps provided standard
Lamps provided standard with integral clear glass protective lens
Compact, low-profile style meets ADA fixture specifications
UV stable thermoplastic housing
White or black finishes offered
Mounts to electrical boxes up to 4" square
Remote capacity and damp location listed models available
120/277VAC, 60 Hz operation standard (220-240VAC, 50/60 Hz optional)
Fully automatic solid-state charger
Maintenance-free, pure-lead battery
All models operate for a minimum of 90 minutes
Built-in protection includes low-voltage battery disconnect and isolated transformer
Available with Spectron self-diagnostic/self-testing electronics option
UL listed, standard 924 (Emergency Lighting)
Factory assembled unit/LED exit sign
Bright, even exit face illumination
Single face and universal models
Red and green letter exit faces available
Snap-in, chevron type directional arrows
Long-life LED lamps provide over 20 years of service
Design allows end, ceiling or wall mounting
Unit: Housing and back plate constructed of flame-rated, UV stable, ABS thermoplastic
Lamp Housings: Constructed of flame-rated, UV stable, polycarbonate thermoplastic
Exit: Housing and exit faces constructed of flame-rated, UV stable, ABS thermoplastic
Finish: Textured bright white or black
Operating Temperature Range: Non-damp location listed: 20 - 30 Damp location listed: 10 - 40 C.
Unit Lamp Type: Halogen MR-16 package
Rated Unit Lamp Life: 100 hours
Exit Rated Lamp Life: In excess of 20 years :
Exit Brightness Index: 2 times 1998 UL requirements
Exit Illumination Uniformity: 10 times 1998 UL requirements
High Output Halogen Lamp (Horizontal Isofootcandle Distribution) Photometrics measured by independent testing laboratory
Input: 120/277VAC, 60 Hz (standard)
Built-in Protection: Transformer isolation and low battery voltage disconnect
Charger: Solid-state, constant voltage, current limited type
Transfer: Solid-state design (Relay transfer on Remote Capacity models)
Battery Recharge Cycle: Per UL time standards
Test Means: Integral test switch
Indicators: LED AC-On indicator
Unit Wall Mounting: Unit mounts to 3 1/2", 4" octagon, or 4" square outlet boxes and standard plaster rings. Back plate provides a universal knockout pattern for mounting to outlet box. Keyholes provided for securing unit housing to wall surface. Ceiling or Side Mounting: Tandem models may also be ceiling mounted using bracket provided or side mounted using FTSMK field kit. Wiring: Pre-stripped AC input leads provided. AC connections made inside housing.
