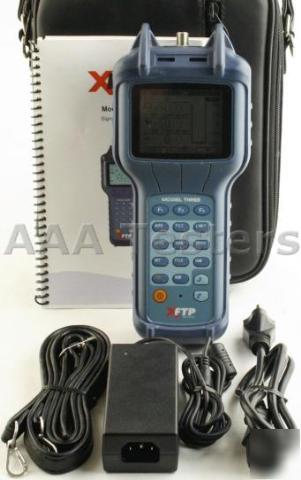

* Trilithic Model Three XFTP Signal Level Meter w/ Options:
* QAM Constellation Magnification
Trilithic Model Three XFTP Signal Level CATV Meter
QAM Constellation Magnification
5 MHz to 1 GHz Frequency Range
* 5 MHz to 1 GHz Frequency Range
* Full Scan, Single Channel, and Spectrum Modes
* Digital Signal Measurements: Power, MER, Pre- and Post-FEC BER (Including Deep Interleave)
* Rugged, Simple to Use, and Cost Effective
The Model Three signal level meter is ideal for CATV installations - featuring a wide range of tests for analog and digital channel measurements. This rugged instrument can be customized, streamlining tests and making your installations and troubleshooting more efficient.
With the press of a single key, the meter performs a complete test of all channels in the selected user channel plan to specified limits. It can also be set to automatically perform Level, Spectrum, Tilt (Favorite), Hum, QAM, and Limit tests at programmed intervals, unattended.
Carrier amplitudes are displayed individually, grouped with up to 12 favorites , or in scan mode with five levels of magnification or full channel plan scan. This meter features a single-channel spectrum mode which displays interfering beats in addition to the carrier amplitudes. The meter also tests QAM channels, performs Hum measurements, provides data logging, includes a voltmeter, and much more.
Digital Channel Measurement with Constellation Display
The Model Three can measure the channel power of QPSK and QAM channels when testing or troubleshooting your digital transmission system. This function also measures MER and pre- and post-BER for QAM channels (including deep interleave).
The Constellation display allows the operator to quickly analyze 64 and 256 QAM downstream channels verifying quality or identifying impairments. This feature is field-installable and can be added at the operator s convenience.
The Model Three can display up to 126 channels in a single view or a total of 170 channels can be displayed in overlapping views. The settings for the active measurement mode can be accessed at the press of a single key, without going through nested menus. This allows the operator to quickly make changes in the settings and return to measurement mode saving valuable time.
As an aid to troubleshooting, the operator can choose LIVE, MAX, or P-P (variation) signal level displays.
In Spectrum mode the full spectrum or frequency spans from 2.5 MHz to 62.5 MHz can be displayed. The MARKER function is included in Spectrum and Single-Channel Spectrum modes. MAX HOLD captures transient events. The Model Three also has an Average display function for Spectrum.
The Hum measurement function is used to troubleshoot interference that may result from a defective power supply or faulty or overloaded power inserters. This mode includes 60 Hz and 120 Hz (or 50 Hz and 100 Hz) and low pass (1 to 400 Hz) measurements.
The Model Three is equipped with a built-in voltmeter function that can be used for troubleshooting power supplies or power drops. The measurement is displayed as a bar graph with a numerical readout and can accommodate AC or DC voltages up to 100 Volts.
A significant time and cost savings feature of the Model Three is the capability to group tests into automatic tests that can be executed with a single keystroke. Several Auto-Tests can be stored in the meter and recalled as needed. These may include Level, Tilt, Spectrum, QAM, Hum, and Limit tests. Limit test data allows for test uniformity and flexible field storage, and may be automatically scored against specified limits and assembled into reports.
Automated Proof of Performance
At the press of a key, the Model Three performs FCC Part 76 level-related tests including: Visual Carrier Levels, V/A, Max Visual Carrier Levels, and Adjacent Visual Carrier Levels. Measurements can be executed immediately or programmed to occur at timed intervals, unattended, as an FCC 24-hour variation test. The test results can then be compared against FCC limits, or limits set by the user.
The operator can select and save the test data of the Level, Tilt, Spectrum, Scan, QAM, Hum, Limit, and Auto-Test measurements and recall them as needed. Scan, Spectrum, and Limit files can be viewed graphically. Any combination of up to 30 Level, Tilt, Spectrum, Hum, QAM, or scans, or up to 22 Limit test measurement files may be saved on the Model Three. These data records may be uploaded to a PC through the optional ToolBox software for reports, analysis, and printing.
Extended Battery Life, Fast Charging
The Model Three s battery provides five hours or more of continuous use between charges. One hour of fast charging from AC or vehicle power provides nearly two hours of extended operation.
Accuracy: 50 ppm @ 20 C 5 (68 F 9 )
Digital TV: 16/32/64/128/256 QAM, QPSK, COFDM
Range: 5 MHz to 65 MHz (-42 dBmV to +60 dBmV)
65 MHz to 1GHz (-35 to +60 dBmV)
1.5 dB @ 10 to 30 C (50 to 86 F)
3.0 dB @ -10 to +40 C (14 to 104 F)
Resolution: 0.1 dBInput impedance: 75 (unbalanced, BNC or F-type connector)
Scanning speed: 3 channels per second
Scale: 1, 2, 5, 10 dB/divZoom: 1x, 2x, 3x, 4x, 5x; five levels of magnification or full channel plan scan
Bandwidth: 2.5 MHz, 6.25 MHz, 12.5 MHz, 25 MHz, 62.5 MHz, and full span
Demodulation type: ITU-T J.83 Annex A/B/C standard
Support: 16/32/64/128/256 QAM, QPSK, COFDM
Bandwidth: 0.28 to 9.99 MHzM: To 36 dB or greater (QAM)
BER: 1E-3 to 1E-9 before and after R-S decoding (QAM)
Power measurement type: QAM, QPSK, COFDM
Accuracy: 2.0 dB @ 10 to 30 C
(50 to 86 F) 3.0 dB @ -10 to 40 C (14 to 104 F)
Display size: 64 and 256 QAMConstellation with zoom capability
Number of channels: 4 to 12esolution: 0.1 dB
Any of the following may be enabled:
Min video: 40 to 119 dB V (-20 to +59 dBmV)
Max video: 41 to 120 dB V (-19 to +60dBmV)
24-hour video dev.: 0 to 20 dB
Tests: Level, Tilt, Spectrum, QAM, Hum, and Limit (any or all tests may be used in an Auto-Test program)
Input range: 10 to 100 VAC or VDC
Accuracy: 2.0 Vesolution: 0.1 V
11.1 V / 1.4 AH Li-Ion battery
Provides 5 hours of continuous operation
Charger: 100 to 240 VAC, 50/60 Hz, 15 VDC, 2 A (max)
Charge time: Less than 3 hours
RS-232C (Converts to USB with data cable)
Up to 30 complete scan files (170 channels, max) or 22 complete Limit test files (170 channels, max); less if other files (Level, Tilt, QAM, Hum, Spectrum) are saved
