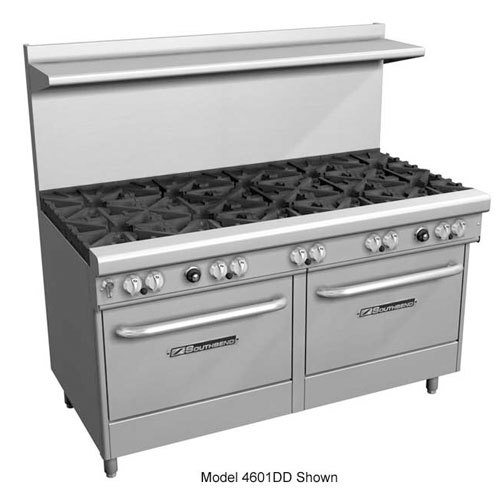

> Southbend 4601DD range, 60" wide, 10 burners with stand
Southbend 4601DD range, 60" wide, 10 burners with stand
restaurant equipment dealer logo
Range, 60" Wide, 10 Burners with Standard Grates (33,000 BTU), With Two Standard Ovens (45,000 BTU), Ultimate Series
One year No Quibble, 24/7 parts and labor warranty
10 inch flue riser without shelf
22 inch flue riser with shelf std
5 inche flue riser without shelf
Ultimate Restaurant Range, Gas, 60", 10 Non-Clog burners with standard grates, (2) standard oven base, stainless steel front, sides, shelf and 6" adjustable legs, 420,000 BTU
* Commercial gas range 60-3/4" wide with a 27" cooking top
* 4" Stainless steel front rail, stainless steel front and sides
* Front located manual gas shut-off to entire range
* Factory installed Regulator
* Cast iron grate top will hold a 14" stock pot
* Standard Grates, Cast in bowl design for better efficiency, Allows full use of entire range top, Easy to move cooking vessels across cooking surface
* Standing pilot for open top burners (Optional N/C electronic ignition not available for griddles)
* Raised griddle available 24" only, manual control with under broiler
* 22.5" flue riser standard with heavy duty shelf. Optional 10" and 5" flue riser available without shelf.
* Oven Door: Counter balanced with heavy duty hinges,
* Oven Interior: Double sided, full porcelain enamel oven cavity for
* superior cleanability and corrosion protection. Coved corners for easy
* cleaning and enhanced airflow eliminating hot/cold spots.
* Legs: 6 stainless steel adjustable legs standard (casters optional)
* Pressure Regulator: Factory installed.
* Convection Oven Models (A):
* 32,000 BTU NAT convection oven with standing pilot and thermostat
* range of 175 degrees F to 550 degrees F (790C to 2880C). Porcelain enamel interior measuring 14 high x 26 wide x 24 deep. Three racks with five
* position side rails. 1/2 hp, 1725 rpm, 60 cycle, 115V AC, high efficiency,
* permanent split phase motor with permanent lubricated ball bearings,
* overload protection and Class B insulation. On/Off switch to allow CO
* base to operate as a standard oven.
* ELECTRICAL: (for models with convection ovens) Standard -115/60/1 furnished with 6 foot cord with 3-prong plug. Total max amps 3.8 per convection oven base.
* GAS: One 3/4 female connection
* Manual Gas Shut Off - Safely turn off gas to the entire range with one convenient handle
* Manufacturer: Southbend Range
