New 1 eclipse ahma airheat burner

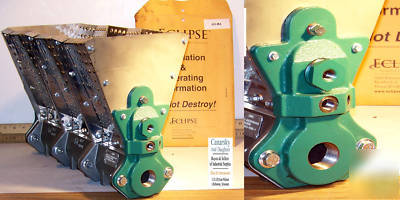

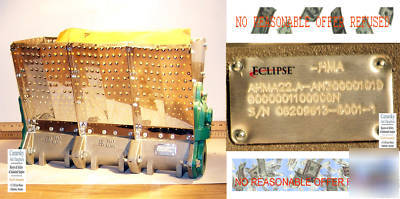

THIS LOT CONSISTS OF: 1 NEW ECLIPSE AHMA AIRHEAT BURNER. AHMA22.A-AN3000010100000001100000N. S/N 06209613-0001-1. Application: Make-up air heating. Capacity: 351 kW/ft. Turndown: 30:1. Maximum process temperature: 454 C. Fuel: Natural Gas, propane, butane. Designed for trouble-free make-up or process air heating. Eclipse AH-MA burners produce a uniform, odorless, and smokeless flame ideal for heating fresh air in make-up and process air heating applications. The AH-MA design provides stable operation over a wide range of velocities, inputs and fuels. AH-MA easily passes all global standards for indoor air quality through a wide operational range. It is ETL listed, complying with ANSI Z21.20 design standards, and is used in systems which meet ANSI Z83.4 / CGA 3.7 emissions standards for NOx and CO. The new aluminum burner body creates a lightweight, corrosion resistant burner. Cast iron and corrosion resistant cast iron bodies are also available. Divergent air wings are made of stainless steel. The burner bodies supply fuel to the center of the air wings to control the air and fuel mixture inside the burner and to optimize emissions and efficiency. CONDITION: NEW SURPLUS. NO REASONABLE OFFER REFUSED.
