Motor starter, magnetic, siemens/furnas, 75 amp 3PH nos

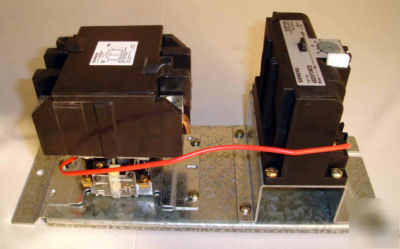

What we have here is a Siemens/Furnas 16FE32AF 3 phase magnetic motor starter made up of a 75 amp definite purpose contactor and an ESP100 solid state overload relay, military surplus stock, unused, in box. The contactor is 3 phase, 75 full load amps up to 600 volts, with a 120 60 Hz volt (110 volts at 50 Hz) coil, plus a normally open aux contact. The solid state overload relay can be set for a full load amperage of 45 to 75 amps. Specifications are shown here: http:// /furnas/pdf/furnas_class16_starters.pdf
Note that this solid state overload relay requires no connection to the load. The motor wires pass through holes in the relay assembly, the relay senses the magnetic field around the wires. Motor current is continuously variable from 45 to 75 amps with no messing around with heaters. This solid state overload provides superior protection against single phase outage. The size of the assembly is about 12x5 inches at the mounting surface, and about 5 1/2 inches above the mounting surface.
The street price of this starter, with the solid state overload seems to run around $700.00 and up new. Here is your chance to get one for less and keep the change.
Feel free to ask questions. I'll answer them to the best of my ability. Returns on electrical goods are accommodated only if the description is inaccurate or incomplete.
