> 6000 gal stainless steel jacketed mix tank w mixer innj

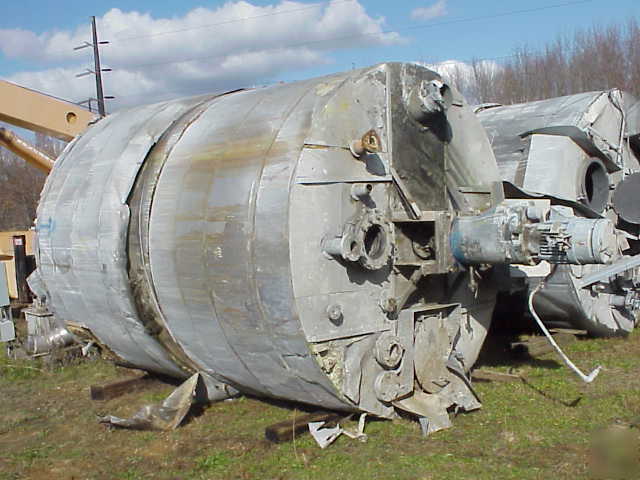

6000 gal stainless steel jacketed mix tank w mixer innj
Gallons 6000 Diameter 9' Lgth./ Height 12' ; The Top is Flat and the Bottom Dish . Manufacturer Missouri Boiler & Tank Serial T1241-A :Stamped NB 881 : Head thk 7/16&5/8" Shell 5/8; 3/16" ; 5/16". Hd rad 102/108.
Description 6000 gallon jacketed Stainless steel mix tank. Has 10 HP Philadelphia model MV-10 Mixer, 1750 RPM with 20.9 Ratio, 84 RPMo. CS jacket rated 35 PSI @ 270 F. Full type jacket on bottom head and 6'6" up the straight side. 3" Center bottom outlet. Several top openings including manway and product hatch.
