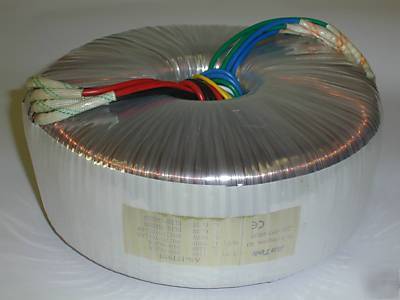

> 2000VCT 1.5KVA toroid tube transmitter amp transformer
2000VCT 1.5KVA toroid tube transmitter amp transformer
1. Primary V = 120VAC, Primary I = .11A or core loss is 13Watt.
2. Primary V = 140VAC, Primary I = .13A or core loss is 18Watt
TEST CONDITION: Input 120VAC 60Hz to the primary coil; parallel 2 secondary coils, 500 ohm 250W resistors as dummy load and room temperature at 25 degree C. Temperature rises 10 degree C after an hour test at load test #2.
1. Primary I = 0.11A, Secondary V = 1060VAC at 0.0A, Power = 0 Watt
2. Primary I = 9.90A, Secondary V = 1030VAC at 1.05A, Power = 1080 Watt
3. Primary I = 17.10A, Secondary V = 992VAC at 1.98A, Power = 1968 Watt
Dimension 8.25 Diameter x 3.4 High.
If you have more technical questions or production quantity, please e-mail to ****@yahoo.com or visit .
