2-stage rotary vane vacuum pump 29"hg 2CFM 200W ac hvac
2-Stage Rotary Vane Vacuum Pump 29"Hg 2CFM 200W AC HVAC

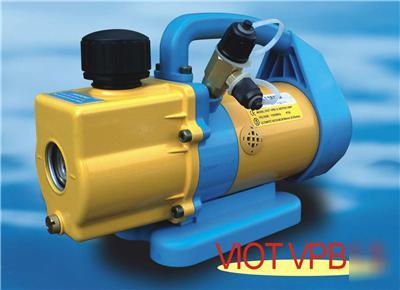

You are looking at a BRAND NEW 2-STAGE DEEP VACUUM PUMP
model: VPB1.5; single phase 110 VAC; double(2) stage rotary vane VACUUM PUMP; 1.58CFM, 200 Watt
a great gift idea for a man or woman in HVAC service!
Or EMAIL ALL QUESTIONS TO JOHN
* Aluminum ALLOY CASING: Alloy casing,
* Japanese design, Very light in weight, less than 10 lb, take it any where(say, rooftop) and get the job done.
* Double(2)-Stage Rotary Vane Vacuum Pump
* Direct drive motor allowing easy starting and is maintenance free.
* Elastomeric coupling between the motor and pump results in quiet running and good performance.
* FORCE FED LUBRICATION Provides clean, filtered oil to all internal bearings and wearing surfaces regardless of the pump operation. Cleaner oil reduces ware and break downs.
* Great pump for HVAC jobs, bell jar/desiccator evacuation, jewelry gluing jobs, or any thing light(non-continuous) duty jobs. this pump bring water to boil at room temperature easily, but this pump is NOT designed for molding work or industrial, continuous heavy duty jobs. DO not use this pump for over 1 hour at max vacuum.
* Oil drain valve positioned at bottom of oil reservoir.
INTAKE PORT: 1/4 inch SAE, and 3/8 inch SAE flair
MAX VACUUM: 38 micron or 0.05 mbar absolute pressure(more than 29.9 in Hg vacuum)
* Come with 1 bottles of vacuum oil, just dump it in, you are ready to go!
* Power cord come with the pump; power switch on the pump too.
User manual Down Load: click here now! http://viot.us/showmanual.php?model=VPD5
Frequently Asked Questions: http://viot.us/showFAQ.php?model=VPD5&sw=0
WE SUPPLY HVAC SCHOOLS AND CONTRACTORS!
MORE PRODUCTS AVAILABLE, AND CHECK THEM OUT NOW!
VIOT, located in Champaign IL, is proud to be an alternative source for quality HVAC tools
serving the HVAC community for almost a decade . Here is a partial list of what we supply:
* Vacuum pumps, from 1.5 CFM to 12 CFM, single stage and dual stage, over 10 models to choose from,
* Clamp meters and multimeters, more functions get the job done easier.
* Halogen and gas leak detectors, find the hard-to-find leaks and fix it,
* Digital thermometers, infrared thermometers, Hygrometers
* Manifold gauges, manometers for system diagnosis
* Oil and Florescent dye injectors
* Tubing tools, tube cutters/benders
* Valve tools, valve core remover/installer, Ratchet wrenches, valve cores and add-on valve/service port.
* Car AC attaching /recharging tools, quick connectors
* Temperature/Humidity sensors and monitoring devices,
* Motor start/run capacitors, 5 MFD to 50 MFD, dual capacitance available.
* AC and AC Tool parts, accessories, etc
* Check with us for specials and discounts often. They change from time to time
* Hours of operation are 9AM E.S.T to 5PM E.S.T Monday - Friday, excluding Federal Holidays.
* DO NOT send any correspondence through bays's checkout service, we will not receive it.
* VIOT & Her Associates strive to respond to email within 24 hours.
WARRANTY, EXCHANGES AND OR RETURNS
* This listing is covered by our seven (7) business day return/exchange policy. If the item in this listing is not as described, pictured, or does not function as it should, please contact us to obtain an RMA number. The only exception is on used items that are not within 'calibration specifications' since we cannot determine these. These items will be covered by a seven (7) business day DOA (Dead On Arrival) warranty and can be returned/exchanged only if the item is received DOA (does not turn on at all).
* Any damage described in the listing, as well as any type of component item, such as capacitor, thermocouples, batteries (new or used), fuses, or easily scratched materials (plastic/paint) etc. are not covered by this warranty. The retail box of items described as new are also not covered by this return/exchange policy, just the contents of said box.
* Clearly Speaking, the vacuum pumps, clamp meters and multimeters, manifold gauges, manometers, recovery units are covered by an one year warranty; digital scales, digital thermometers of any kind, small tools and adapters/connectors are covered by a 30-day warranty; capacitors and thermocouple thermistors are warranted to be Not-Defective-on-arrival.
* Our pictures are always an exact representation of the product being offered. However if the item you are looking at is part of a set, it is the one piece as stated of the set, the whole set are usually available at a different price.
* Local pickup at our facility is more than welcome during business hours. Please email us for full details. Pickup is CASH only.
