10 amp bipolar stepper motor driver
10 AMP BIPLOAR STEPPER MOTOR DRIVER
UP TO 10 AMPS PER PHASE with fan cooling and heatsinks.
6 to 15 VOLT BOARD POWER INPUT
BOARD DIMINSIONS 3" X 3 1/4" X 3/4" HIGH

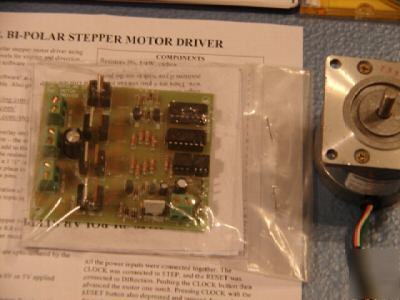

STEPPER MOTOR SHOWN IN PICTURE NOT INCLUDED.
This is an L/R type drive. inductance (motor) /Resistance for voltage control.
They are very efficient low cost drives that can work on voltages as low as 5 volts, and therefore can work with very low cost power supplys. They have step and direction inputs on the board.
