> Hp 1662CP - logic analyzer/pattern generator

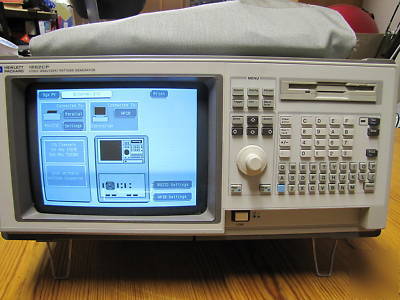

Hp 1662CP - logic analyzer/pattern generator

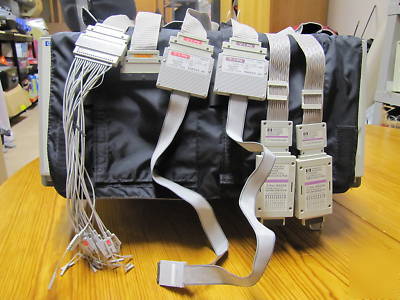

This unit is used and is in perfect working condition. It was last calibrated in June, 2009. Included are the Pod 1 and 2 High density probe adaptors-HPE5346A (Odd and Even), the Pod 4 Data/clock adaptor, and 2 of the HP10462A 3-State TTL/CMOS Data Pod (200 M vector/s Pattern Generators.
These Benchtop logic analyzers have the features to help the design team troubleshoot hardware and find software defects quickly.
An optional LAN interface enables software designers to capture a real time microprocessor trace and time correlate it to source code in C++ or other high level languages on a PC or workstation.
* State and Timing channels of 68Ch
* State Analysis Speed of 100MHz
* State Clocks/Qualifiers of 4
* Memory Depth per Channel of 4K per channel, 8K in half channel modes
68 Ch State/500MHz Timing Benchtop Logic Analyzer
4K per channel, 8K in half channel modes
