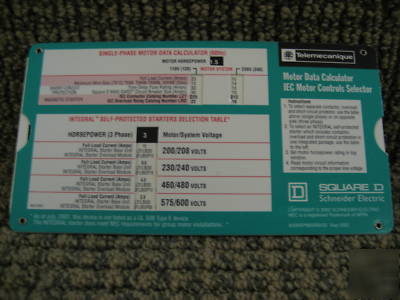

Electrical motor data calculator slide chart selector
For sale is an Electrician's best friend. This slide chart can quickly and accurately determine the proper wire size for a given motor system in conjuction with its horsepower. Other features of this slide chart are listed below.
* Single-Phase Motor Data Calculator (60Hz)
* Integral Self-Protected Starters Selection Table
* Three-Phase Motor Data (208v, 240v, 480v, 600v)
* Determine Minimum Wire Size
* Time-Delay Fuse Rating (Amps)
* Square D MAG-GARD Circuit Breaker Size (Amps)
* IEC Contractor Catalog Number LC1
* IEC Overload Relay Catalog Number LR/ LRD
* Integral Starter Base Unit
* Integral Starter Overload Module
This selector was produced in 2002 and is compliant to the 2002 National Electric Code (NEC). Questions are welcomed & thanks for your interest.
