Coinco coinpro 3 coin changer 9302-gx

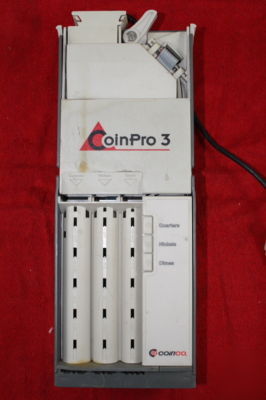

CoinCo coinPro 3 coin Changer 9302-GX
CoinCo 9302-GX Series Coin Changer
* Accepts U.S. nickels, dimes, quarters and dollar coins.
* Pays out nickels, dimes and quarters from self-loading, high capacity change tubes.
* change capacity of $40.55.
* Modular design for easy service.
* Select high or low quarter tube by simply flipping a switch.
* Heavy-duty D.C. payout solenoids provide fast, accurate payout.
* State-of-the-art electronic logic system is designed for reliability and performance.
* Lightweight, rigged plastic construction provides dependable, maintenance-free service.
* Provides the fastest and most accurate coin acceptance of any electronic unit available today.
3.6 Amp max. at 26VDC for 100 ms every 500 ms during payout
750 m Amp max. for 1 second for each coin accepted
0 to 150 Degrees Fahrenheit
-22 to 160 Degrees Fahrenheit
Height: 14.81 inches high (base to top of coin return lever)
Width: 5.28 inches in width (acceptor latch to acceptor latch)
Depth: 2.86 inches (gate closed)
