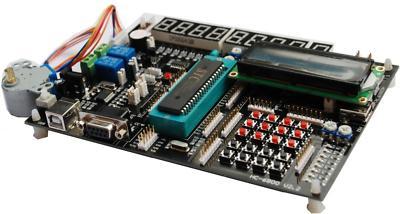

8051 mcu development board studying kit&stepper motor
one Aluminium-magnesium Alloy Box for this Board
one 18B20 Temperature Detector
This is an integrated demo system for the study and development of the 8051 Microcontroller, both for the STARTERS and
further development, capable of any 51 series MCU and AVR chips.
let's see some advantages of this Board
Size of the gift box: 20*15*6 CM
With big size and elegant layout, makes your operation more easily and provide you a visual enjoyment.
It looks luxurious and noble, you will love it at first sight ,:)
For beginners Keil C51 is the best choice, it's free as long as your program below 2KB,our DVDs will provide the
Providing 2 kinds of downloading programs
1. Equiped with STC89C2 chip, do not need an extra programmer or recorder, directly write your program into the chip
with USB or SATA line with a re-write limit of more than 100,000 times)
4. 8 digit LED: They could experiment and simulate various calculators and digital indication, including simulating
single chip machines as LED-clock etc
5. 4*3 matrix keyboard for program developing needs.
6. Buzzer voice: could finish sound type experiment like music playing and alarming.
7. Infrared receiving and connector: It could be used to do infrared decoding experiment or make infrared remote controller
8. USB port communication circuit
9. ISP downloading head, support to download program from host PC to board.
10. A24C02(EPROM with 2kb space, should be enough for your program)
11. DS18B20 ( DS1820 ) Temperature Sensor (with port that you can output your signal ), from -55 C to 125 C.
12. Industrial grade A/D and D/A converter
13. Real Time clock and displayer ( with year, month, day, hour, minute and second) with battery supply
14. 1062 LCD screen port (capable of output your signal )
16.Digital LED display with 8bit-7segment
19.USB comm:conncetor for MCU with USB facilities
20.PS2 connector:make possible direct connection between MCU and PC keyboard
STC8951 Studies and Development Board
DVD(Keil C51,with some sample code(C/ASM))
Aluminium-magnesium Alloy Box for this Board
