Tektronix TDS754D 500MHZ oscilloscope tds 754D -loaded-

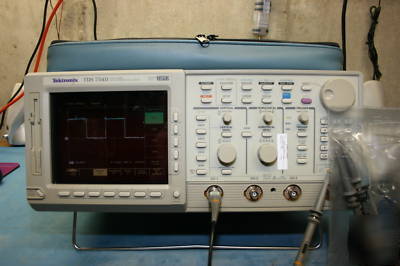

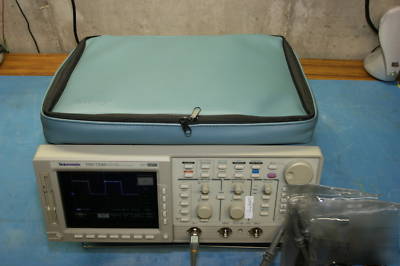

Tektronix TDS754D Oscilloscope
TDS754D is a 4-channel digital phosphor oscilloscope with a 500MHz bandwidth and a 2GS/s sampling rate.
The oscilloscope has DPO mode (digital phosphor oscilloscope) which utilizes parallel processing to continuously capture, display, store and analyze complex signals in real-time, using three dimensions of signal information - amplitude, time and distribution of amplitude over time resulting in an intensity graded display. The DPO option is the primary differentiator between the TDS754D version, and the TDS754C and prior versions which had InstaView instead of DPO.
* have a continuous waveform capture rate of up to >300,000 wfm/s, 50x faster than any other type of oscilloscope
* provide intensity grading, in real-time, as part of the acquisition system unlike DSO persistence display mode that relies on post-processing of data
* enable test throughput 10's of times faster than DSO's due to the unique parallel processing
* uniquely acquire signals in real time using 3 dimensions of information

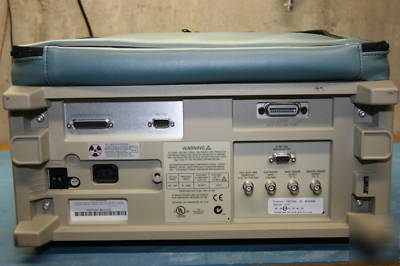

* opt 13: adds RS232C and Centronics hardcopy ports
* opt 1F: adds the floppy drive
* opt 2M: adds 8M memory (2M/channel)
* opt 2F: adds extended waveform math (FFT, integration, differentiation)
* opt HD adds internal Harddrive
