Rosemount 1054B analyzer/ controller ph, tds, plating
Was Removed from a functioning system that was not being utilized.

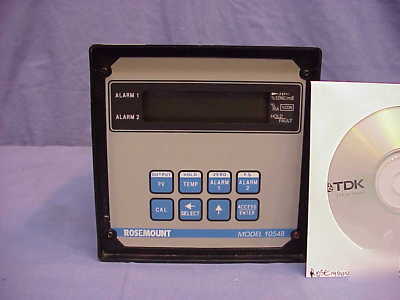

This unit POWERS UP. Please see the powered on photos below.
The Rosemount Analytical Model 1054B Microprocessor Analyzer is designed to monitor and control acids, bases and salts in industrial applications
such as acid or caustic dilution, rinse tank control in metal plating operations, leak detection in boiler condensate return lines and control of total dissolved
solids in water to prevent scale formation.
The Model 1054B T is housed in a NEMA 4X (IP 65) enclosure suitable for panel, pipe or wall mounting. All analyzer functions are accessed via the Model 1054B
indicates conductivity, temperature, temperature slope, and output current, as well as alarm status, hold output and fault conditions.
Field wiring is easily accessed by removing the rear cover.
All operations of the Model 1054B T microprocessor Analyzer are controlled by the eight (8) keypads on the front of the instrument. These keypads are used to :
1. Display parameters other than the primary parameter.
2. Edit setpoints for alarms, set up specific output current value for simulation, calibrate temperature, conductivity, etc.
3. Configure display for temperature units, for automatic temperature compensation, alarm usage, setting timer functions, security, and output range.
Measurement Range: From 0-50 S/cm to 0-2,000 mS/cm
Resolution: 0.05% of full scale reading
Repeatability: 0.25% of output range
Accuracy: 0.5% of measurement range
Stability: 0.25% of output range over 30 days, non-cumulative
Temperature Compensation: Pt 100 RTD Automatic or Manual: 0 to 200 C (32-392 F)
Temperature Slope Adjustment: (continuously adjustable) 0-5%/ C
Current Output: Isolated, 0-20 mA or 4-20 mA into 600 ohms maximum load at 115/230 Vac or 550 ohms maximum load at 100/200 Vac
Span: Span from 10% to 100% full scale
Zero Suppression: Up to 90% full scale
Ambient Temperature: -20 to 65 C (-4 to 149 F)
Operating Voltages: 115/230 Vac 50/60 Hz
