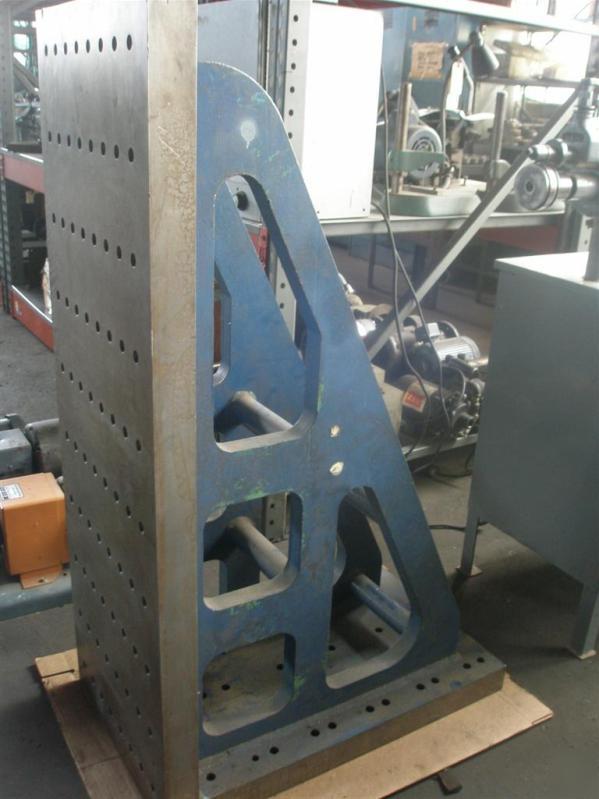

Precision angle plate; 18†x 50†x 31†quality
PRECISION ANGLE PLATE; 18 x 50 x 31 QUALITY
USED FOR MOUNTING FIXTURES FOR MACHINE SET-UP, LAYOUT, OR INSPECTION
OUTSIDE WORKING SURFACES ARE PRECISION GROUND FLAT & SQUARE
UPPER PLATE DIMENSIONS: 50 x 18 1/8 x 2 5/16
BASE PLATE DIMENSIONS: 31 x 18 1/8 x 2
5/8 (11 THREADS/INCH) BOLT HOLES
DISTANCE B/T CENTER OF BOLT HOLES: 2
