> Pfaudler 2.6 cubic foot glass lined double cone dryer

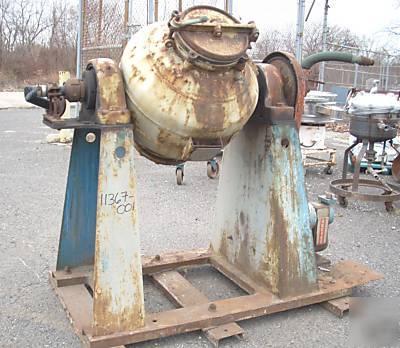

Pfaudler 2.6 cubic foot glass lined double cone dryer
Used Pfaudler glass lined Double Cone Dryer Model 24-45-CD-MS. 2-ft. Glasteel, working capacity 2.6 cu. ft., total capacity 4 cu. ft. Internal rated 30/FV @ 650 degrees F. Jacket rated 80 PSI @ 350 degrees F. Heated area 11.8 sq. ft. Vacuum tube assembly. Reeves variable frequency drive, 1/2 HP 3 phase 60 cycle motor with chain drive. Glass type 5915. National board 25978. Serial Number R570-0672.
