PIC18LF4525, pic microcontroller, mcu, flash, qty 3
PIC Enhanced FLASH Microcontroller

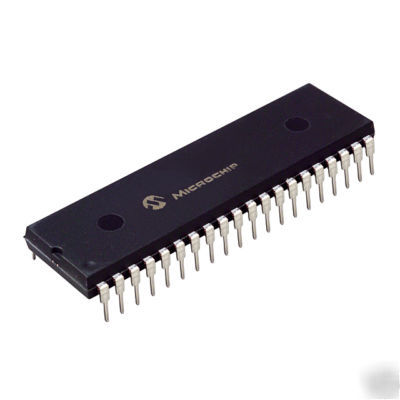

PIC18LF4525-I/P, Flash High Performance Microcontroller with 13 Channel, 10 Bit A/D Converter, 40 Pin DIP, Quantity 3, MICROCHIP.
The PIC18LF4525 offers high computational performance, with the addition of high-endurance, Enhanced Flash program memory. Additionally, the PIC18LF4525 features design enhancements that make these microcontrollers a logical choice for many high-performance, power sensitive applications.
* C compiler optimized RISC architecture
* 8 x 8 Single Cycle Hardware Multiply
* Internal oscillator support - 31 kHz to 8 MHz, up to 32 MHz with 4X PLL
* Fail-safe Clock Monitor allows safe shutdown if clock fails
* Watchdog Timer with separate RC oscillator
* Wide operating Voltage range; 2.0V to 5.5
nanoWatt Power Managed Modes
* Idle mode currents down to 5.8uA typical
* Sleep mode currents down to 0.1uA typical
* 10-bit ADC, 13 channels, 100K samples per second
* Programmable Low Voltage Detection Module
* Programmable Brown-out Reset module
* Two Analog comparators with input multiplexing
* Master Synchronous Serial Port supports SPI and I2C Master and Slave Mode
* EUSART module including LIN bus support
Quantity 3 ..... New Parts !!!!!
