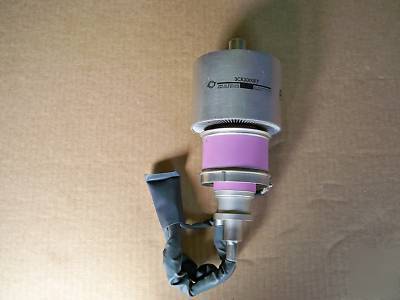

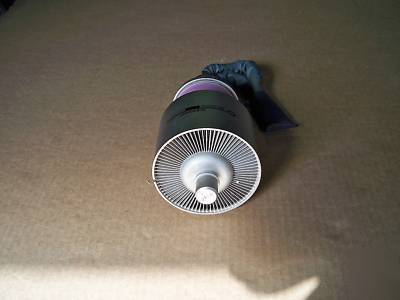

New svetlana 3CX3000F7
FILAMENT VOLTAGE 7.5 50.5 AMPS
MAXIMUM PLATE VOLTAGE 5000 VDC
435 WATTS MAX INPUT 7250 WATTS OUT
REQUIRE 2.5 AMP CCS PLATE TRANSFORMER
WARRANTY WITH MANUFACTURER-MISUSE OR ABUSE WILL VOID THE WARRANTY. THIS MEANS EXCESSIVE DRIVE APPLIED TO THE TUBE, OVERVOLTING THE FILAMENT, AND OVERVOLTATE ON THE PLATE VOLTAGE. WHENTHE TUBE IS CUT OPEN FOR WARRANTY INSPECTION AND THESE CONDITIONS EXIST THERE IS NO WARRANTY-COMMON SENSE RULE.
