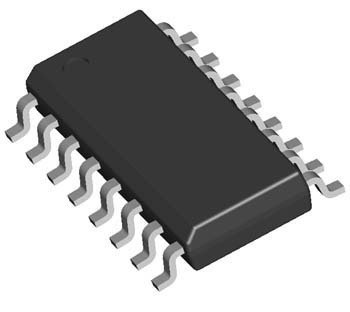

Ic chips:MAX497CSE/496 375MHZ quad closed-loop av=+1,+2
375MHz Quad Closed-Loop Video Buffers AV = +1 and +2
Small-Signal -3dB Bandwidth: 375MHz (MAX496) 275MHz (MAX497)
Full-Power -3dB Bandwidth: 230MHz (MAX496) 215MHz (MAX497)
- 0.1dB Gain Flatness: 65MHz (MAX496) 120MHz (MAX497)
- 1600V/ s Slew Rate (MAX496) 1500V/ s Slew Rate (MAX497)
- Fast Settling Time: 12ns to 0.1%
- Lowest Differential Phase/Gain Error: 0.01 /0.01%
- 5.6nV/ Hz Input-Referred Voltage Noise
- Low Distortion: 64dBc (f = 10MHz)
- Directly Drives 50 or 75 Back-Terminated Cables
- Output Short-Circuit Protected
- Broadcast and High-Definition TV Systems
- High-Speed Signal Processing
