> Nkk switches illuminated toggle, super bright blue

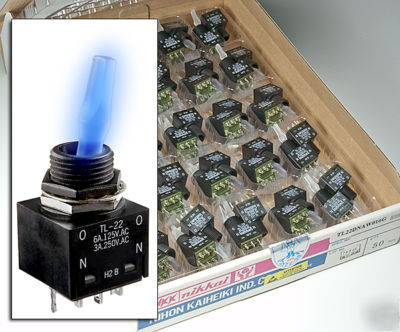

Nkk switches illuminated toggle, super bright blue
These fully illuminated super bright blue toggles are perfect for many applications, especially suited for hobbiest s purposes.
Double Pole Double Throw, ON / ON, 6A @ 125VAC, 3A @ 250VAC or 6A @ 12VDC, Blue LED.
To see full specifications of TL22DNAW016G, please click on the link below.
http:// /pdf/tl.pdf
Choice of long or short toggles in translucent colors combine with
bright LEDs available in red, amber, and green, plus super bright
LEDs available in white, green, and blue.
Black face nut enhances front panel appearance.
Antistatic material used for toggle withstands
20 kilovolts electrostatic discharge.
Panel seal, achieved with use of optional
exterior o-ring, conforms to IP65 of IEC60529
Interior o-ring protects contacts from oil, dust,
water, and other contaminants.
UL94V-0 flammability rated for base.
High insulating barriers protect against crossover.
Terminals are molded in and epoxy sealed to lock out flux,
Email questions will promptly be answered Monday - Friday 7:30 - 4:30.
Power Level (code W): 6A @ 125V AC or 3A @ 250V AC or 6A @ 12V DC for silver
Logic Level (code G): 0.4VA maximum @ 28V AC/DC maximum for gold
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
1,500V AC minimum between contacts & case for 1 minute minimum
Mechanical Life: 50,000 operations minimum
Electrical Life: 25,000 operations minimum for silver; 50,000 operations minimum for gold
Static Capability: Withstands 20 kilovolts ESD minimum
Nominal Operating Force: 1.9N for .689 (17.5mm) toggle; 2.5N for .433 (11.0mm) toggle
