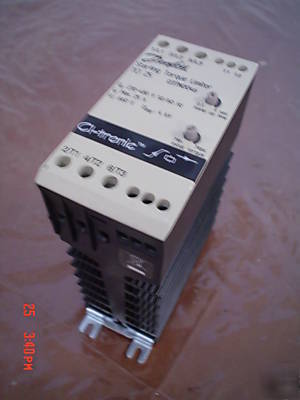

> Danfoss starting torque limiter tci 25 (037N0046)
Danfoss starting torque limiter tci 25 (037N0046)
Technical Data Control Circuit Specifications TCI 25
AC 3, AC 53a and AC 58a (motor load) - 25 A
208 - 240 V a.c 0.1-7,5 kW (0.18-10 HP)
400 - 480 V a.c. 0.1-11 kW (0.18-15 HP)
480 - 600 V a.c. 0.1-18kW (0.18-25 HP)
Semiconductor protection fusing
type 1 co-ordination 100 A gL/gG
Ramp-up time Adjustable from 0,5-5 seconds
Initial torque Adjustable from 0-85% of nominal torque
EMC immunity meets requirements of EN50082-1 and EN 50082-2
Rated insulation voltage, Ui 660 V
Rated impulse withstand voltage, Uimp 4 KV
Thermal specifications and environment
Power dissipation, continuously duty 1 W/A
Power dissipation, intermittent duty 1 W/A. x duty cycle
Operating temperature range 5
Cooling method Natural convection
Mounting Vertical (see also general mounting instructions)
Max. temperature with limited current 60
oC, see derating for high temperatures in chart below
Storage temperature range 20 C to 80
Protection degree / pollution degree IP 20 / 3
Housing Self extinguishing PPO UL94V1
Heat sink Aluminum black anodized
