> 177 oz/inch stepper motor & ic - cnc mill lathe robot
177 oz/inch stepper motor & ic - cnc mill lathe robot
UNI-POLAR 3A Torque 149 Oz-Inch 6-wire connection
BI-POLAR 2.1A Torque 177 Oz-Inch 4-wire connection
1.8 deg 200 steps/rev when full-stepping
dimensions are 2.25" x 2.25" x 2.50" (excluding the shaft) - that's 57mm x 57mm x 67mm. Shaft is 1.8 (45mm) long.

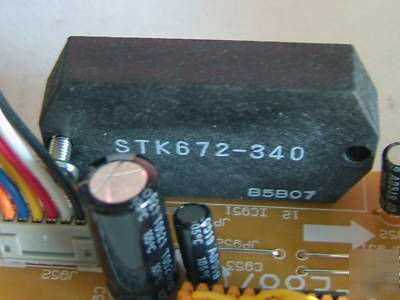

This item includes a STK672-340 IC for those people who want to make their own DIY controller card. I will include plans for a DIY controller card based on a similar STK672-120 IC.
http:// /content/download/846/6194/file/STK672-340-E.pdf
