Usb 2.0 fpga development kit / experimental board
Complete FPGA Development Kit:
USB 2.0 FPGA Module + Experimental Board with Power Supply + Accessories
* Two Expansion Boards for the Experimental Board
* Two 2x32 pin male pin headers (for the connection of the USB FPGA Module and the Experimental Board)
* Two 2x32 pin female pin headers (for the connection of the USB FPGA Module and the Experimental Board)
* Four 1x23 pin male pin headers (for the connection of the Extensions Boards and the Experimental Board)
* Four 1x23 pin female pin headers (for the connection of the Extensions Boards and the Experimental Board)
* Two 9 pin serial connectors, male
* High-Speed (480 MBit/s) USB interface via Mini-USB connector (B-type)
* Wide input range: 8 to 25 V
* Delivers all required voltages using high-efficiency step down regulators:
* 1.2 V @ 1.6 A (3 A peak)
* 2.5 V @ 1.6 A (3 A peak)
* 3.3 V @ 1.6 A (3 A peak)
* I/O voltages Vright and Vtop can be easily and independently set to 3.3V, 2.5V, 1.2V or to an external voltage
* All I/O Ports available on a standard 2.54 mm (0.1 inch) grid via four 1x23 pin connectors (two Extension Board are contained in the kit)
* Two serial interfaces with drivers
* Schematics of the Experimental Board (PDF)
Experimental Board 1.1 (top side)
Top side of the Experimental Board.
Experimental Board 1.1 (bottom side)
Bottom side of the Experimental Board.
Accessories delivered with the Experimental Board
Accessories to the Experimental Board.
Top side of the Extension Bord (two pieces are included in the Development Kit).
Extension Board (drawing of the Layout at the bottom side
Drawing of the Layout at the bottom side of the Extension Bord (two pieces are included in the Development Kit).
2x32 pin male pin header (2 pieces are included in the Development Kit).
2x32 pin female pin header (2 pieces are included in the Development Kit).
1x23 pin male pin header (4 pieces are included in the Development Kit).
1x23 pin female pin header (4 pieces are included in the Development Kit).

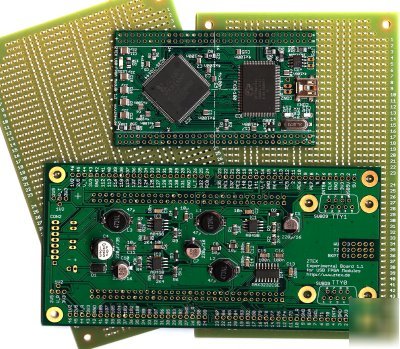

> USB-FPGA-Module with Experimental Board and two Extension Boards
Experiential Board with USB-FPGA-Module and two Extension Boards.
