> Nsk sheenus neo ultrasonic polisher standard set
Nsk sheenus neo ultrasonic polisher standard set

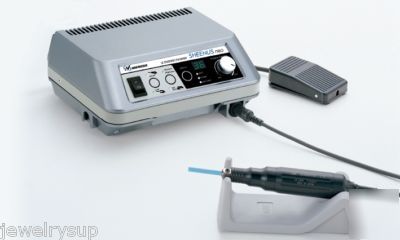

ULTRASONIC POLISHER SHEENUS neo STANDARD SET US-25PBS
This tool quickly removes hard layers of EDM deposits and polishes difficult areas such as complex corners and ribs.
Capabilities include bur removal, grinding and polishing of precision molds, dies electronic and ceramic components.
Ultrasonic Handpiece (US-25PB)
Included Accessories (Tip Holder 2 pcs., Ceramic fiber grindstone 1 pc., Electroplated diamond file 1 pc.) : 1 set
Handpiece stand (Z095209) : 1 pc.

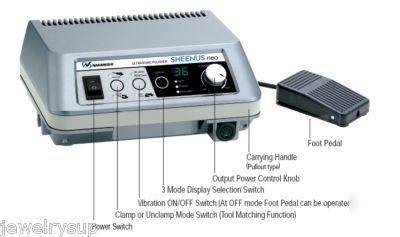

Digital Displayed Function 2 Mode Display Selection : WATT POWER
Powerful and Constant Maximum output of 45W (Center Frequency 22.5KHz) and constant output power.
Dimensions : W8.86" x D7.68" x H3.82"
Oscillation frequency : 22.5KHz (center frequency)
Power conditioning : Continuous variable type
Frequency control : Homing type
Output power : UNCLAMP mode Max. 45W, CLAMP mode Max. 20W
Ergonomically comfortable and light for effortless work over long periods.
Lightweight, resin body ergonomically designed to provide precise control while operating.
Oscillator : PZT piezoelectric type

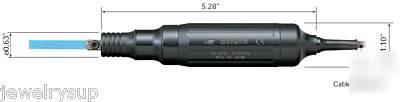

Dimensions : 0.63" (Max. 1.10") x L5.28"
Weight : 4.94 oz. (excluding cable)
