> Watts 0340096 288AC-1 chrome anti siphon vacuum breaker

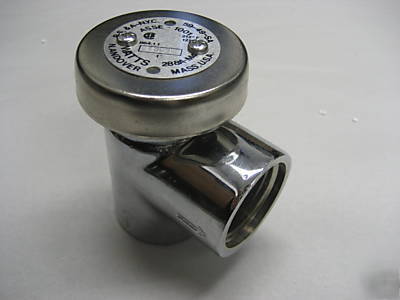

Watts 0340096 288AC-1 chrome anti siphon vacuum breaker
This is a new Watts part. We purchased some of another company's inventory and these were some of the items included. The box is old but the part is in perfect condition. 1" CHROME ANTI-SIPHON VACUUM BREAKER. RATED FOR 125 PSI AND 212 DEGRESS FAHRENHEIT Series 288A Hot or Cold Water Anti-Siphon Vacuum Breakers prevent the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It consists of chrome finish (288AC), chemical resistant silicone seat disc and an atmospheric vent to prevent spilling. Series 288A has a full size orifice to assure pipe size capacity and maximum flow. It is ideal for low flow, non-continuous hot or cold water health hazard installations such as on laboratory equipment. Maximum Pressure:125psi (8.6 bar). Installation
1. Install 6" (152mm) above highest point
2. No downstream shutoff valves are allowed.
3. Device can spill water; install where spillage is not objectionable.
4. Use only with non-continuous pressure (pressurized a maximum
