> Square d sy/max rom-271 class 8030 B1 output module
Square d sy/max rom-271 class 8030 B1 output module

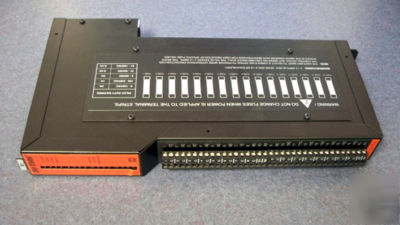

Square D SY/Max Class 8030 ROM-271 16-Function Isolated Relay Output Module
* Serial Number: 30617-593-50, Series B1
* Isolation Rating: 2500 VRMS
* Turn on Time: 10ms Nominal
* Turn off Time: 10ms Nominal
* Output LED Operation: Red LED illuminated when receiving ON signal from processor
* Maximum Output Voltage: 240VAC, 120VDC
* Maximum Output Current: 2A, AC/DC
* Maximum Pilot Duty Rating: AC: 2A @ 5-125VAC, 1A @ 126-240VAC, DC: 2A @ 5-30VDC, 0.4A @ 31-60VDC, 0.1A @ 61-120VDC
* Minimum Permissible Load: 5VDC, 10mA
* Rated Current Draw on SY/Max Power Supply: 90mA @ 100% Duty Cycle
* Ambient Temperature: 0-60 C
