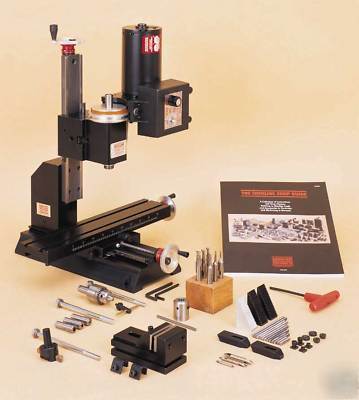

Sherline milling machine 5400A package w/accessories
The deluxe 5400-series mill is our most popular mill. It comes equipped with all of Sherline s standard features upgraded to include a laser engraved 12" (305mm) solid aluminum base for 2" or additional Y-axis travel, laser engraved scales on the table and base, 2-1/2" (63mm) adjustable "zero" handwheel on the Z-axis and 2" (51mm) adjustable "zero" handwheels on the X- and Y-axes, a mill headstock spacer (P/N 1297) to provide more throat distance and a 1/4" drill chuck and drawbolt (P/N 3072).
All Sherline mills feature precision machined dovetailed slides with adjustable gibs, permanently lubricated spindle bearings, adjustable preload anti-backlash feed screws and a high-torque 90 VDC motor with electronic speed control. Speed is continuously variable from 70 to 2800 RPM without gear or belt changes. A second pulley position is also available to provide extra torque at low RPM if needed.
At first glance, a vertical mill looks similar to a drill press, but there are some important differences; such as, a spindle that can take side loads as well as end loads and an accurate method of moving the work in relation to the spindle on all three axes. Sherline milling machines can perform all of the tasks and operations that a large commercial machine can perform. Operations such as fly cutting, precision drilling, and boring are all routine tasks for the Sherline mill. Because the tool turns rather than the work, much larger parts can be worked on in a mill, and these parts need not be round. The work is securely held, thus extremely accurate hole patterns can be drilled or bored. The longer X-axis throw also increases the machine s versatility over that of the lathe with the vertical milling column attachment. It is an extremely rigid, accurate tool that accomplishes tough machining jobs with ease.
Sherline milling machines are offered in four models and can be purchased in either inch or metric versions. The inch models have their feeds calibrated in .001" increments, while the metric model is calibrated in .01mm increments. The machines are equipped with a high-torque DC motor with variable speed control. This speed control is internally equipped with a converter that automatically adjusts between inputs of 100 VAC to 240 VAC, 50-60 Hz. without loss of torque. Speed is continuously variable from 70 to 2800 RPM without gear or belt changes. A second pulley position is available for providing additional torque at low RPM.
This is the "A" Package which includes the standard equipment plus:
Model 5400 (5410) deluxe vertical milling machine (with 12" base, adjustable "zero" handwheels and laser engraved scales on base and table)
P/N 1297 headstock spacer block
P/N 3013 step block hold-down set
P/N 3021 3-pc. center drill set
P/N 3060 3 pc. mill collet set
P/N 3072 Jacobs 1/4" tailstock drill chuck w/ key, #1 Morse arbor with drawbolt
P/N 3079 3/8" end mill holder
P/N 7400 6-pc. 3/8" shank double ended end mill set
P/N 5327 Sherline Shop Guide book
Max clearance, table to spindle
Throat (without headstock spacer)
Throat (with headstock spacer block)
Movements in addition to X-, Y- and Z-axes
Headstock rotation 90 left/right
Headstock rotation 90 left/right, column rotation (90 L/R), column pivot (front/back), column swing (90 L/R) and 5.5" column travel (in/out)
90 volt DC with electronic speed control automatically converts any input from 100 VAC to 240 VAC, 50 or 60 Hz. (See motor specifications)
*Overall dimensions include motor and speed control
