> Pelco FR8302AMSTR-2 2-channel multimode fiber receiver

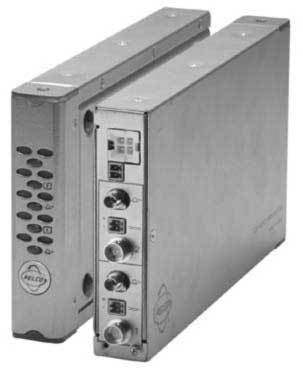

Pelco FR8302AMSTR-2 2-channel multimode fiber receiver
Fiber optics can be seen as the gold standard in cable transmission. Compared to metal-based cables (e.g. RCA, BNC, UTP), fiber optic wiring links are far less susceptible to signal attenuation and are also immune to electromagnetic interference. The result is that fiber can be strung over much greater distances before needing amplification. Just as important is the higher bandwidths supported by fiber optic - up to 111Gbps per light channel, though 10 or 40Gbps is most often utilized. Finally, it is virtually impossible to illicitly tap into a fiber cable the way that can be done with copper-based cables. The Pelco FR8302AMSTR-2 highlights all of these attributes in an industrial grade yet uncomplicated device. As such, it is the tool of choice for demanding security applications needing the ability to send large amounts of data, over long distances, and in a secure manner.
Note! Optional powered rack chassis available (RK5000-3U / RK5000PS-3U)
Thanks to an 8-bit digital encoding process, this unit is able to maintain superb video quality with the level of sharpness and color depth expected in demanding security environments.
Meets NEMA TS 2 and Caltrans Traffic Signal Control Standards
This unit is designed to meet NEMA TS 2 and Caltrans traffic signal control equipment standards for ambient operating temperature, mechanical shock and vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection (certification pending).
This unit exceeds all requirements for the RS-250C medium-haul transmission specifications.
No Performance Adjustments Required
This unit is designed to attain peak performance without requiring any adjustments on your part.
Optional Multi-Unit Powered Rack Box Available
To save desktop space and for better power management, you can install this unit in an RK5000 series rack chassis. The Pelco RK5000PS-3U 19" rack chassis holds 12 fiber modules and also has a built-in power supply that provides electricity to all modules. There's also the RK5000PS-3U rack chassis, which has room for 14 fiber modules but does not come with a built-in power supply.
Pulse code modulation, 8-bit resolution
Rack Power/Alarm: 4-pin connector
Standard Power: 2-pin connector
12VDC or 24VAC (includes 12VDC adapter)
-40 ~ 167 F (-40 ~ +75 C)
1.1 x 4.8 x 8.8" (27 x 122 x 222mm)
