Northern reader interface (PW5K1R1) used

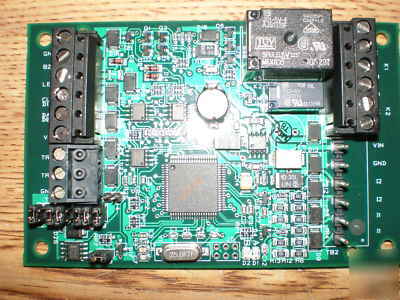

Reader Interface (PW5K1R1) Used Some conectors are missing
The PW5K1R1 provides interfacing to a TTL/Wiegand type reader
and door hardware as needed, for a single door. The Reader
Interface can accept data from a reader with clock/data or Wiegand
interface and provides a tri-stated LED control and buzzer control.
Two form-C relay outputs may be used for strike control or alarm
signaling. Two supervised inputs are provided for monitoring the
door contact and exit push button and one input (J3) for enclosure
tamper. Communication to the interface is accomplished via an
