> New von duprin ept-10 power transfer brown SP313 in box
New von duprin ept-10 power transfer brown SP313 in box

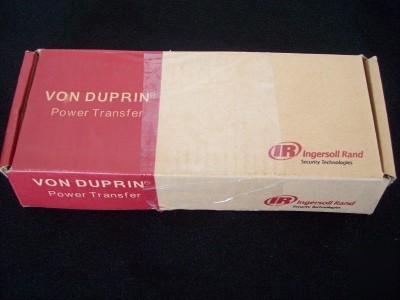

Von Duprin EPT-10 Power Transfer Brown SP313 New In Box
EPTs are used to transfer power from the door frame to the door.
One half of the unit mortises into the frame, the other half into the door. Between the two halves is flexible armored conduit where the wires pass. All EPTs come with wire installed, which you may or may not use. Some applications require different wires than those furnished.
EPT-2 comes with 2/ea 18 ga. wires.
EPT-10 comes with 10/ea 24 ga. wires.
Most applications require only two wires as they power just a simple switch, or an exit device with latch retraction. The EPT-2 fits these applications well.
If you have more than one switch to power you will need additional wires. You may add your own wires to the EPT-2, or simply order an EPT-10. It gives you 10 wires which is more than you'll probably ever need. One note of caution: if powering an EL exit device from Von Duprin you will need 18 ga. wires minimum. These devices have high amp requirements and 24 ga. wires are too thin.
Most every other type of wiring can use 24 ga. This includes Touch Bars, Signal Switch (SS) and Request to Exit switches (RX).
Can use EPT with inswing or outswing doors. Door can swing up to 180 degrees with standard hinges. Do not use with center-hung pivots or swing-clear hinges.
0 - 180 opening with up to 5 butt hinges
0 - 180 opening with up to 3/4 offset pivots
0 - 130 opening with 5-1/2 butt hinges
0 - 110 opening with 6 butt hinges
