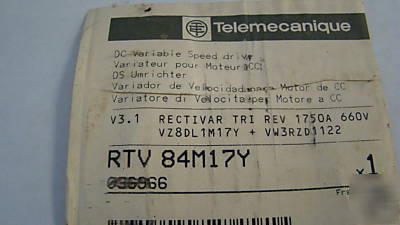

> New telemecanique 1090 hp, 813 kw, dc drive, RTV84M17Y,
New telemecanique 1090 hp, 813 kw, dc drive, RTV84M17Y,

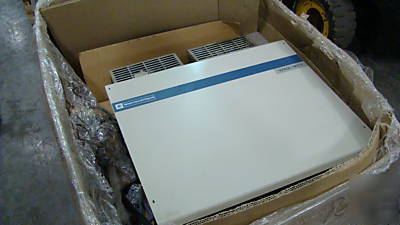

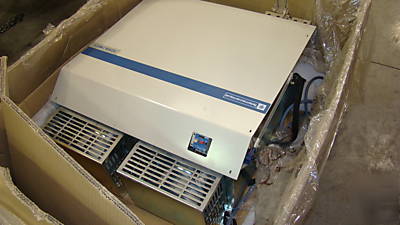

Telemecanique Rectivar 84 DC Drive
660 Volt : 1090 HP : 1750 Amp : 813 kW : Reversible
This drive consists of two components:

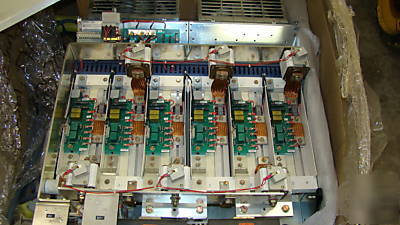

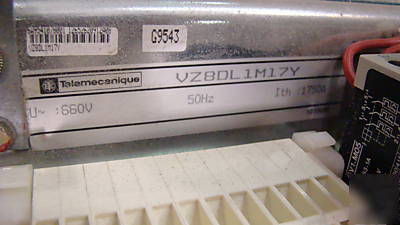

Component #1: The Power Module# VZ8-DL1M17Y (being sold here)
Component #2: The Control Panel# VW3-RZD1122 (not included) this panel is nessasary to program
the drive although you may be able to control via ModBus or Uni-Telway interface but you will want
to check with Square D on this.
Click here for Rectivar 84 Manual:
http://www.download.schneider-electric.com/85256E540060850F/all/713A98F0441B2F2985256DD50069B9C9/$File/vvg626gb.pdf
I don't know if it is still under factory warranty.
This drive is sold and supported by Square D
