Jtag programmer JTAG20 10 pin connector cable adapter

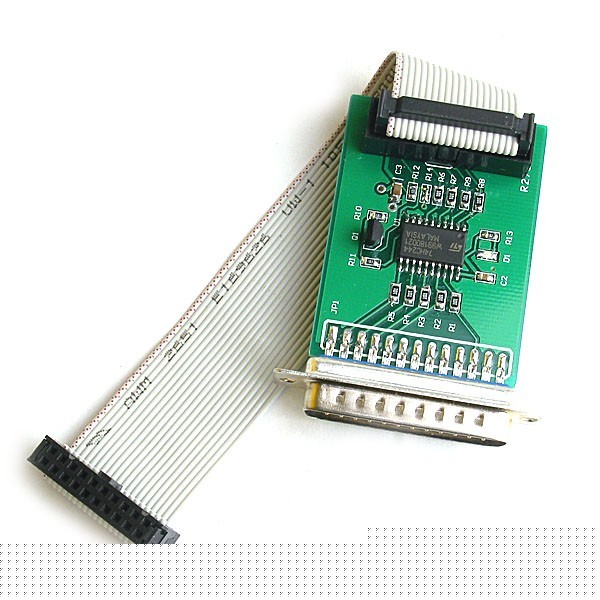

JTAG Programmer JTAG20 10 pin Connector Cable Adapter
The JTAG programmer has a parallel port and comes with an attached JTAG20 cable and cross connection board.
No external power supply needed - connect the parallel port of the JTAG wriggler to the corresponding port of your PC, which will provide 2.7 5.5V DC power.
* Test populated circuit boards
* Access sub-blocks of integrated circuits
* No need for external power source
* Uses a standard 2 x 10 pin JTAG connector
* High quality programmer adapter
* Programmer dimensions: 6.7 x 4.1cm (2.6 x 1.6 )
* Length of connector cable: 14 x 2.5cm (5.5 x 1 )
