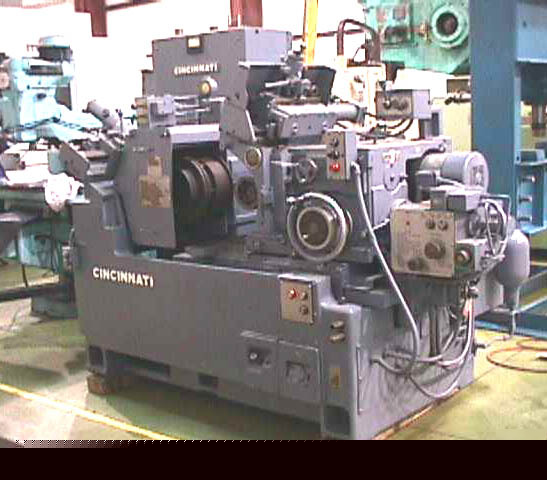

> Cincinnati model #220-8 centerless grinder
Cincinnati model #220-8 centerless grinder
CINCINNATI MODEL #220-8 CENTERLESS GRINDER
Grinding Wheel Diameter, Maximum: 20"
Grinding Wheel Width, Maximum: 8", 1" Minimum
Grinding Wheel Hole Diameter: 12"
Regulating Wheel Diameter, Maximum: 13", 9 3/4"
Electro Hydraulic Infeed Attachment, Variable Speed
Auto Wheel Balancing Mechanism, (3 Hardened Steel
Hydraulic Dessers On Both Wheels
Hydraulic Regulating Wheel Profile Diamond
Filmatic Grinding Wheel Bearings
Automatic Lubrication To Slides
Electrical System: 220/440 Volt, 3 Phase, 60
Cycle, Mounted On Rear Of Machine, (Currently
Approximate Dimensions Of Machine: 60" x 108" x
Approximate Dimensions Of Tank And Pump: 24" x
Approximate Weight: 8,500 Lbs.
