Greenlee 6805 deluxe cable puller

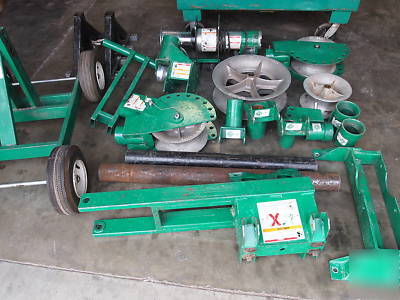

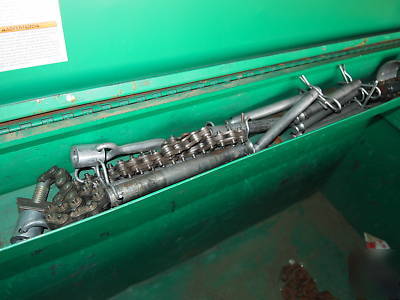

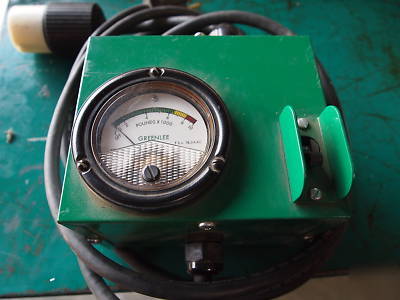

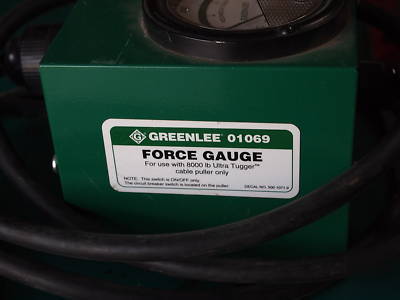

YOU ARE LOOKING AT A USED GREENLEE 6805 CABLE PULLER THAT IS IN GOOD WORKING ORDER. THIS GREENLEE KIT COMES WITH EVERYTHING THAT CAME WITH IT FROM THE FACTORY. Comes with Optional deluxe force gauge.Ultra Tugger Cable Puller Deluxe Package. Includes Standard Force Gauge, Wheeled Carriage, 3 ft (.9m) and 4 ft. (1.2m) Boom, Boom Mount and Nose Unit, Elbow Unit, Floor Mount, 2-1/2 , 3 , 3-1/2 and 4 slip-in couplings, 2-1/2 , 220 VAC 50Hz Power Requirement
* Dimensions Length - 11.5 in. (292.1 mm)
* Height - 8.5 in. (215.9 mm)
* Drive Motor 1-1/2 Horsepower
* Power Source 220 VAC 50 HZ;
* Pulling Force Maximum - 8,000 lbs. (35.8 kN), Continuous - 6,500 lbs. (28.9 kN);
* Pulling Speed - No Load: 9 fpm, (2.7 mpm)
* At 2000 lbs. (.9 kN): 8 fpm, (2.4 mpm)
* At 4000 lbs. (1.8 kN): 7.5 fpm (2.3 mpm)
* At 6000 lbs. (2.7 kN): 7 fpm (2.1 mpm)
* At 8000 lbs (3.6 kN): 6 fpm (1.8 mpm)
* Required Rope -7/8 diameter (22.2 mm); Double-Braided Polyester Composite - Rated at 32,000 lbs. (142 kN) minimum breaking strength.
* Pulls up to 8,000 (35.8 kN) lbs.
* Uses standard 3' rigid steel conduit for boom.
* Lightweight. Portable. Comes with Optional deluxe force gauge.
