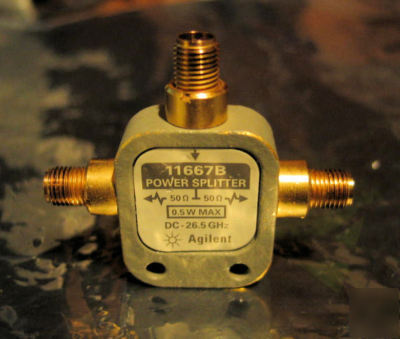

Agilent hp 11667B power splitter, dc to 26.5 ghz
The Agilent 11667B power splitter is recommended when making wideband ratio measurements using an Agilent 8757 scalar network analyzer. This two-resistor type power splitter provides excellent output SWR at the auxilliary arm when used for source leveling or ratio measurement applications. The tracking between output arms over a frequency range from dc to 26.5 GHz allows wideband measurements to be made with a minimum of uncertainty.
* Equivalent output SWR: 1.22
* Maximum input power: 0.5 W
* Tracking between two ports: 0.25 dB to 18 GHz, 0.40 to 26.5 GHz
* List Price $1455 get for around half price.
* If your not happy with your item return it and I will refund.
