> Advantest D3186 / D3286 12.5 gb

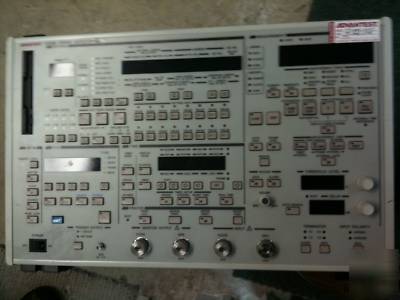

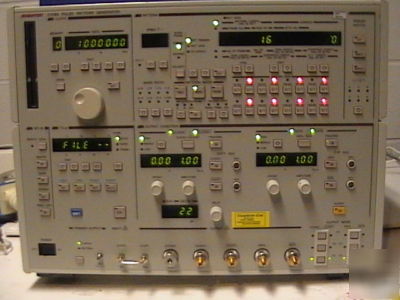

Advantest D3186 / D3286 12.5 gb

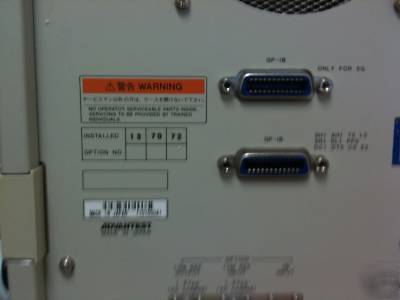

Advantest D3186 OPTIONS 13,70 and 72 Pulse Pattern Generator and

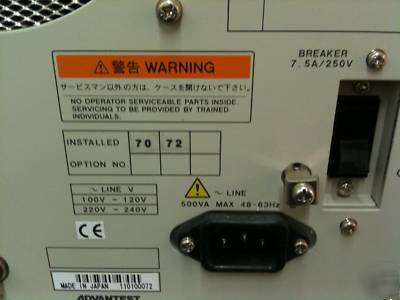

With Options 70 vand 72. These units in current calibration
* Excellent Waveform Quality
* 8M-bit memory, 31 stages for PRBS
* Multi-channel output : 2 data channels, 3 clock channels, and 7 sub-rate channels
* Cross point variable for output waveform
* 3 Vp-p outputs, effective for EA modulators, etc. (option)
* Option 13 - Clock source (up to 12 .5 GHz)
