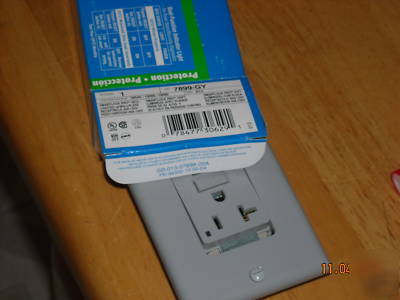

7899-gy gray
20 Amp-125 Volt @ Receptacle , 20 Amp-125 Volt Feed-Through. SmartLock Pro GFCI Monochromatic Receptacle, phase 7 design nema 5-15R. Wallplate and screws included, back and side wired, less grounding clip. Gray
SmartLockPRO, Buttons Match Face Color
* Automatically test the GFCI every time the RESET button is pushed in. The GFCI will not reset if the GFCI circuit in not functioning properly.
* By blocking reset of the GFCI if protection has been compromised, SmartLockPRO reduces the possibility of end-users incorrectly assuming that a reset GFCI outlet is providing ground fault protection when it actually is not.
* A line-load reversal diagnostic feature is provided which prevents the GFCI from being reset and stops power from being fed to the GFCI receptacle face or through to downstream devices. A green LED indicator on the GFCI's face also illuminate4s to alert the installer to the line-load wiring reversal.
* The trip latch mechanism in SmartLockPro GFCIs is a one piece "T" design for efficient operation
* There are 4 sets of contacts for load terminals and face. SmartLockPRO GFCIs use a patented bifurcated bridge contact for efficient operation
* Trip threshold meets or exceeds UL requirements for tripping time
* Improved immunity to high-frequency noise reduces nuisance tripping
* Advanced electronics design provides superior resistance to electrical surges and over-voltages
* Expanded wiring options with nine back-wire holes 9two for each line and load connection plus one for ground with an internal clamp)
* Compatible with all Decora devices and wallplates; available in select Decora colors
