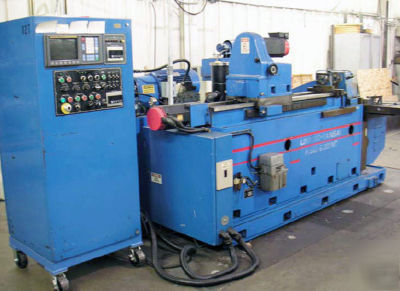

1" x 25" UNISIG KANSAI MODEL KSG-600-CNC KNEE TYPE 3-AXIS GUN DRILL
Drilling depth capacity (with tool steady) 25"
Drilling diameter range .150 - 1"
Cross table length (parallel to drilling axis) 23"
Horizontal table adjustment 22"
Cross table weight capacity 2200 lbs.
Basic machine weight 12,000 lbs.
Spindle speeds, A.C. Inf. Variable in 2 ranges 1200 - 6000 RPM
Feeds infinitely variable via A.C. motor 1-20 IPM
Cross table rapid traverse 240 IPM
Vertical rapid traverse 120 IPM
Coolant tank capacity 300 gallons
Clean side capacity 200 gallons
Dirty side capacity 100 gallons
Controlled axis 3-Axis X, Y & Z
With a 4 HP A.C. motor with frequency converter. Speed adjustments
infinitely variable. Total range of adjustment 1200-6000 RPM
The machine features a heavy duty 2-axis table with anti-friction
bearings. Vertical and horizontal table movement by A.C. servo motors
through ballscrews. Positions for the X & Y are displayed on the
Special chip box housing with chip chute to direct chips toward the
rear of the machine. A pneumatic power bushing holder is located on
the front of the housing to provide clearance during workpiece
positioning and contact sealing while drilling.
Drilling thrust is provided to the feed carriage by a precision ground
recirculating ballscrew. The ballscrew is driven by an A.C. servo motor
and provides infinitely variable feed to the tool. A.C. servo motors
-Totally enclosed for use in contaminated environment
-No periodic brush inspection or replacement because there are no
Free-standing control panel with all required electrical components.
Machine functions are actuated and monitored thru a programmable
The Fanuc System Model OM-C is housed in a separate free-standing
cabinet adjacent to the machine. This is a 3-axis CNC, especially
designed for drilling machines. Then system OM-Model C includes all
standard control features & the following additional features:
-Part program storage and editing. Capacity, 66 ft. of tape info.
The operator's panel includes the following functions:
Rapid traverse forward and reverse
Manual or automatic drilling cycle
Powered movement of knee table
Tool change position for gundrilling
CRT Display of X, Y and Z axis
