> Volgen SP30U-48S ac to dc 48V power supply

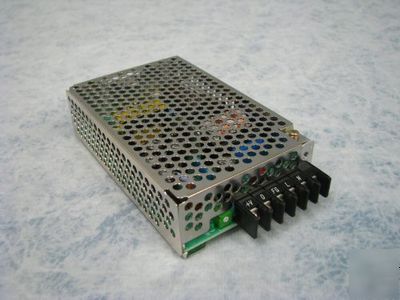

Volgen SP30U-48S ac to dc 48V power supply
Volgen SP30U-48S AC to DC 48V Power Supply Used
Model/Part No:SP30U-48S Our Item ID: 5486
The SP series comes both in single and multiple outputs eliminating the need for several power supplies when different voltages are required. One useful feature is the ability of the power supply to perform within specifications with no minimum load or cross regulation.
Built-in over voltage/current Protection
Input Voltage.............................................. AC 85V-264V
DC 110V-340V Input Frequency.......................................... 47 ~ 63 Hz
Input Current.............................................. 0.33 ~ 0.7A
Inrush Current (100/230VAC cold start) .................13 ~ 35A
Output Voltage........................................... 48VDC
Output Adjustment.................................... 10%
Output Current..........................................0.7A@100V 0.8A@230V
Efficiency.................................................... 70 ~ 79%
Over-Voltage Protection.............................. Zener Limiter
Over-Current Protection.............................. Automatic Recovery (105% min)
Ripple and Noise........................................ 150 mVp-p max.
Hold-Up Time............................................. 20-180 mS
Line/Load Regulation.................................. 50 mv / 120mv max
Rise Time.................................................... 100 mS max.
Leakage Current (100/230VAC)........................ Vin= 100V 0.5mA max. Vin= 230V 0.75mA max.
Item Tested?: TestedPhysical Condition: Excellent; Working Condition: Fully Functional1 | 8x 8x8 | 1
