Transco 919C70100-8 spdt failsafe switch 28V dc-18GHZ

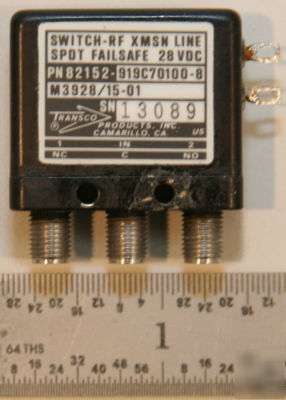

Transco 919C70100-8 SPDT Failsafe Switch 28VDC DC-18GHz
Transco is now part of Dow-Key
Transco 919C70100-8 Specifications:
* Switch Configuration: SPDT
* Actuator Coil Type: Failsafe, Position 1
* Actuator Control Signal: Standard, Vdc to Coils
* Isolation, DC-1 GHz: 80 dB Min
* Isolation, 1-4 GHz: 80 dB Min
* Isolation, 4-8 GHz: 70 dB Min
* Isolation, 8-12 GHz: 60 dB Min
* Isolation, 12-18 GHz: 60 dB Min
* Insertion Loss, DC-1 GHz: 0.15 dB Max.
* Insertion Loss, 1-4 GHz: 0.20 dB Max
* Insertion Loss, 4-8 GHz: 0.35 dB Max
* Insertion Loss, 8-12 GHz: 0.45 dB Max
* Insertion Loss, 12-18 GHz: 0.50 dB Max
* Operating Voltage: 28 Vdc (20-30 Vdc)
* Coil Current: 28 Vdc 120 mA
* Vibration, Operating: 20g's sine/random
* Mechanical Shock, Non-Operating: 50 G, 1/2 Sine, 11 mS
* RF Termination (inactive port): Reflective, Open
