> New prince manufacturing double selector valve ds-5A1D
New prince manufacturing double selector valve ds-5A1D

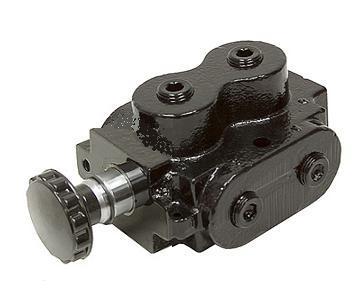

New Prince Manufacturing Hydraulic Double Selector Valve #DS-5A1D
Manual 6-way 2 position double selector valve with knob. This valve will divert the flow going to two seperate hydraulic circuits. For example, two double acting cylinders or two reversible hydraulic motors can be operated by one four-way valve. When the double selector spool is pushed in, the C & D ports (top ports) are connected to the A & E ports (right ports). When the selector spool is pulled out, the C & D ports are connected to the B & F port (left ports). Optional lever handle shown in drawing below.
