Model 3109 1310/ 1550NM dual fiber optic light source

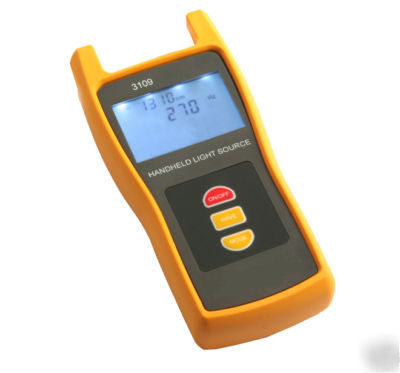

Model 3109 1310nm/ 1550nm Dual Wavelength Fiber Optic Light Source
The Model 3109 series of fiber optic light sources are packaged in a rugged, ergonomic design. This unit includes 1310/1550nm wavelengths for single mode fiber testing. In addition to this model, units versions can provide 1 to 5 wavelengths output to satisfy specific requirements, 850/1300nm wavelengths for multimode fiber testing, and 1490nm for off-band testing. Together with the Model's 3206 & 3208 optical power meter, it is a perfect solution for fiber optic network testing applications.
* Provides 1~5 wavelengths output
* CW, 270Hz,1KHz,2KHz modulation
* High stability of the output power
* Back-lit LCD display supports Low light and night operation
* Test Lab of Optical Fibers
* Other Fiber Optic Measurements
