Midaco “side by side shuttle†manual pallet system

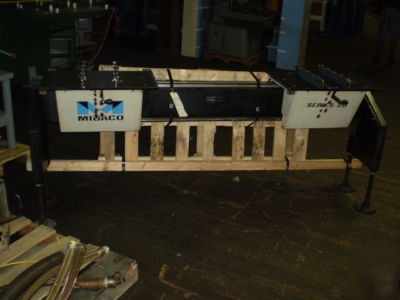

Midaco Side by Side Shuttle Manual Pallet System
This system comes with one cast iron, pneumatically powered receiver, two aluminum pallets and one shuttle unit allowing an operator to change pallets in a matter of seconds. You simply pull one pallet from the production machine onto the shuttle. That shuttle is now pushed to the side. The second shuttle with the new pallet is rolled to the center position where the pallet is then rolled into the production machine.
This system can be used for injection molding machines, vertical milling machines, Drill & Tap machines, surface grinders, CMM machines and other special application machinery.
The shuttle is equipped with precision ground linear guide rails which provide a smooth and effortless transfer of the pallets. It is also equipped with adjustable legs for height adjustment. In addition, a full length shuttle drip trough captures coolant and chips to keep the environment clean.
The cast iron receiver mounts to the production machine table.
Model M2216FL Manual Pallet System.
This unit is in perfect condition.
The following information was taken from Midaco s website at http:// .
Elk Grove Village IL 60007, USA
Manual Pallet System - includes:
1 - Series 20FL Pneumatic Receiver with air blast
2 - 22" X 16" X 1" (558.8mm x 406.4mm x 25.4mm) Front Load Cast Aluminum Pallets
1 - Series 20 Front Load Shuttle Unit
1 - Pallet Clamp Confirmation Safety Switch with 9' (2.74M) cable (Installation is the responsibility of the end user)
Should you have questions, please contact Dick at (***)-264-6140 or email ****@GlobalMachinebrokers.com
