Digital transistor/semiconductor tester/meter,parameter

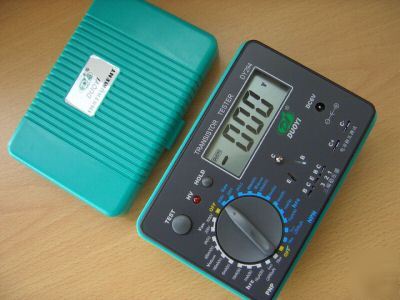

"New Digital Transistor / Semiconductor Tester "
. More than 20 types of test for transistor / components;
. Major component parameters test are covered;
. Simple connection and press a button to get the instant reading;
. Good tool to find the matched component pair;
6. Diode reverse leakage current
10. Infared transmitter transistor forward/reverse voltage
11. Infared receiving transistor forward/reverse voltage
17. Pressure sensitivity voltage
18. Neon light blub light up voltage
19. Electroylsis or ceramic capacitor breakdown voltage
20. 7805~24 or 7905~24 3 terminal voltage regulator test
VCE(Sat) 0~2.5V~6.00V (3 range)
Three terminal 78XX or 79XX voltage regulator 0~24V
Unit Switch Function / Test Socket:
12. Test for Transister / Regulator
. 4 x C size battery, external 6V power supply ( batteries not included);
. Size: 6.5 x 4.5 x 3 LxWxH;
. Accessories: manual, panel protection cover, carrying case
Note: In case the diagram on user manual is difficulty to see, please feel free to ask for sending you the electronic copy.
