> 54750A processor bd software a.07.12 54710-66520
54750A processor bd software a.07.12 54710-66520

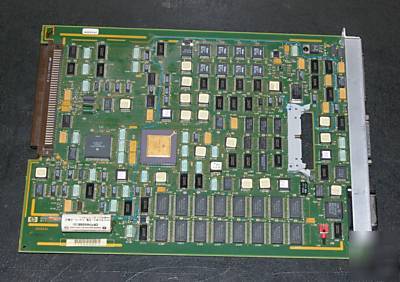

This is a 54750A processor board with a new battery and the latest firmware. Think of it as a software update
I loaded the very latest operating system (A.07.12) so it will handle any plug-in that you might have as well as the latest bug fixes and features. Get more details at the Agilent web site. http://www.home.agilent.com/agilent/techSupport.jspx?pid=59845&pageMode=MN&cc=US&lc=eng OR http://www.airlink.dk/Dokumenter/HP54750A.pdf
Note! Any time the battery is replaced, recalibration is required.
Note! The processor board hardware is common to the 54720A/D, 54750A, and the 83480A, BUT The firmware/software must be loaded for the particular instrument you have. You can use this hardware for any of the three, but you will will need a floppy with the operating system software to load the 54720A or 83480A. The 54750a system is already loaded.
Check my store for 54720A and 83480A loaded processor boards.
Remove the back panel and feet. The processor board is just below the power supply. The display board is just below the processor board. You will need to slide out the display board (ribbon cable) and the processor board as a set. Four screws and they slide out. Its really not too difficult. When you slide the new board in be sure to get them into the slides. It's a little tricky.
Electronic condition It passes all self-tests
Cosmetic condition Nice clean board
Warranty Contact me for fair resolution on any problem.
Thanks for looking. Feel free to contact me with questions.
Of course not all units can be repaired. I disassemble these units for parts. Agilent has classified many of these units as obsolete and parts are not available from Agilent. I have accumulated many of the obsolete parts and many are listed in my store watronics92 I will run the auto self cal on any unit I sell, but I do not have an ISO certified lab. Any unit I sell will pass calibration at an ISO calibration lab.
