New * sealed* allen bradley 1756-L61 /b 1756L61 L61 2MB
Rockwell Automation > PLC & HMI > Controllers > ControlLogix > 1756-L61/B
Allen-Bradley 1756-L61 ControlLogix Logix5561 Processor with 2MB Memory, Series B
Available User Memory: 2048 Kbytes; I/O Memory: 478 Kbytes; Optional Nonvolatile Memory: 64MB CompactFlash (1784-CF64), 128MB (1784-CF128); Digital I/O, max: 128,000; Analog I/O, max: 4,000; Total I/O, max: 128,000; Current draw: 1200mA @ 5V DC, 14 mA @ 24V DC; Controller tasks: 32 tasks, 100 programs/task, Event tasks: all event triggers; One RS-232 serial communication port.
The 1756-L61 Logix5561 controller can be inserted into any slot of a chassis. Multiple 1756-L61 controllers can be installed in the same chassis to communicate with each other across the backplane but operate independently. 1756-L61 controllers can communicate across RS-232-C (DF1/DH-485 protocol), DeviceNet, DH+, ControlNet, & EtherNet/IP networks. To provide communication for a ControlLogix 1756L61 controller, an appropriate communication interface module must be installed in the chassis.

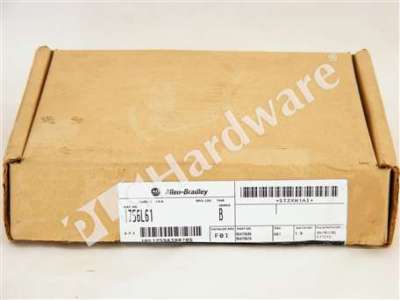

One New Factory Sealed Allen Bradley 1756-L61 Series B, ControlLogix Logix5561 Processor with 2MB Memory.
The unit is Series B, Cat. Rev. F01, Rev. A01, S/W F/W Rev. 1.9, Pkg Date 06/07/06.
