New port MVN80 vertical linear stage mvn with micrometer

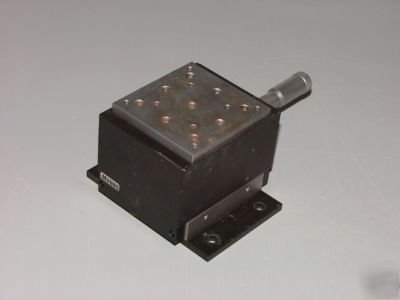

Newport MVN80 Vertical Linear Stage MVN w\\ Micrometer
MVN Series Precision Ball Bearing Vertical Linear Stages provide precise manual height control with micron-scale sensitivity. Their high load capacity makes them especially suited to vertical positioning of heavy payloads.
The stage utilizes an inclined plane design consisting of two precision-machined, opposing wedge blocks. Horizontal translation of the lower wedge is transformed into vertical motion of the upper wedge by means of inclined ball races. For linear, backlash-free travel, ball races are fabricated from precision-ground tool steel and are pre-loaded by a spring. A rotation of one division on the micrometer scale corresponds to a vertical displacement of 5 m. Actual manual positioning sensitivity is about 1 m using a standard micrometer.
* Maximum Stage Travel [in. (mm)]: 0.49 (12.5)
* Load Capacity, Centered with BM Micrometer [lb (N)]: 31 (140)
* Mass [lb (kg)]: 7.1 (3.2)
